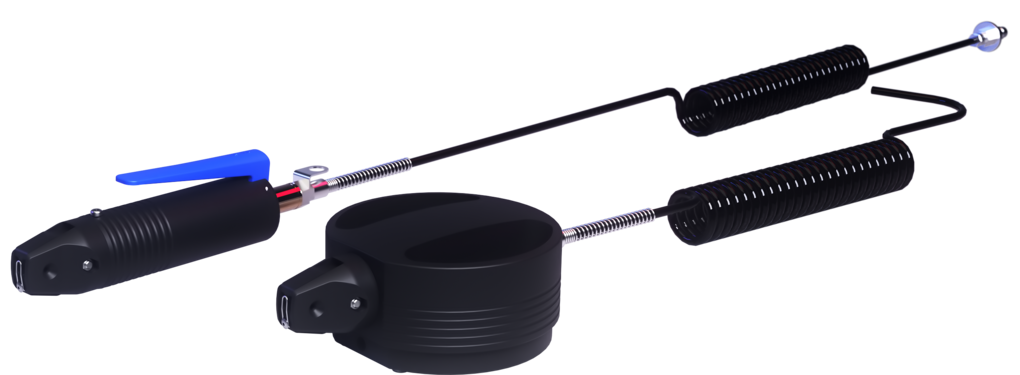

Pneumatic Crimper AC
CrimpingCrimping ferrules is one of the daily tasks in electrical installation, control cabinet production and cable assembly. However, the use of hand tools can lead to signs of fatigue and health problems . The AC Crimper is the perfect solution to reduce effort, increase productivity and improve build quality.
Product Description and Technical Data
- Energy-saving work – No more tiring manual crimping
- Ergonomic alternative to hand tool – Reduces the risk of tendonitis
- Compact and lightweight – ideal for mobile and stationary use
- Easy to use – fast and safe work
- Maintenance-free – Minimal operating costs
- Cost-effective solution – Increased efficiency with low capital expenditure
- Flexible cable entry (AC 25) – either from the front or from the side
| Hand-held version | Weight: 400 g / Dimensions: Ø 44 x 200 mm |
| Desktop version | Weight: 1000 g / Dimensions: Ø 140 x 200 x 70 mm |
| Compressed air supply | 5 bar / 0.5 MPa |
| Crimp width | 12 mm |
| Spiral hose length | 2 m |
Hand version
| Version | Part no. | Crimping shape | Cross section |
| AC 25 | 005993 | Trapezcrimp | 0,14 – 2,5 mm² |
| AC 25 | 005993 | Trapezoid crimp | 0.14 - 2.5 mm² |
| AC 25 SQ | 008061 | Square crimp | 0.5 - 2.5 mm² |
| AC 25 SQ | 008061 | Quadratisch | 0,5 - 2,5 mm² |
| AC 40 | 005996 | Trapezcrimp | 0,14 - 4 mm² |
| AC 40 | 005996 | Trapezoid crimp | 0.14 - 4 mm² |
| AC 100 | 005991 | Trapezoid crimp | 4 - 10 mm² |
| AC 100 | 005991 | Trapezcrimp | 4 - 10 mm² |
Table version
| Version | Part no. | Crimping shape | Cross section |
| AC 25 T | 005994 | Trapezcrimp | 0,14 – 2,5 mm² |
| AC 25 T | 005994 | Trapezoid crimp | 0.14 - 2.5 mm² |
| AC 25 SQ T | 009257 | Square crimp | 0.5 - 2.5 mm² |
| AC 25 SQ T | 009257 | Quadratisch | 0,5 - 2,5 mm² |
| AC 40 T | 005997 | Trapezoid crimp | 0.14 - 4 mm² |
| AC 40 T | 005997 | Trapezcrimp | 0,14 - 4 mm² |
| AC 100 T | 005992 | Trapezcrimp | 4 - 10 mm² |
| AC 100 T | 005992 | Trapezoid crimp | 4 - 10 mm² |
